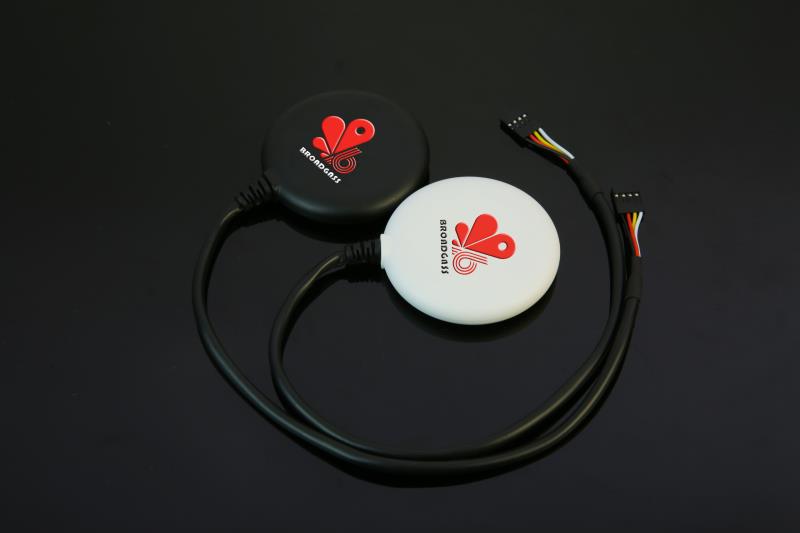

RAC-M1

M1 is a meter level GNSS recevier.  The principal advantages of M1 are high accuracy, low power consumption, small size and light weight. The output format supports NMEA0183.   Application: Shared bikes, Shared cars, Drive travel, Hike, Arctic exploration. Positioning preformance： Positioning Accuracy Static:<2m   Dynamic:<1.5m Speed Accuracy: <0.1m/s Cold start: 23s Sensitivity：Trace -165dBm            Acquisition -148dBm Update rate: 1Hz,5Hz,10Hz     Power： Input：DC 5.0V Comsumption: 60mA Interface： Half-duplex UART     Produce features: Operating Temprature：-30C-80C Size: Diameter 66mm (including line dock: 66.5mm)*Hight 14mm PCB size: Diameter 60mm * Hight 8mm Weight: 40g (Only PCB: 20g)
