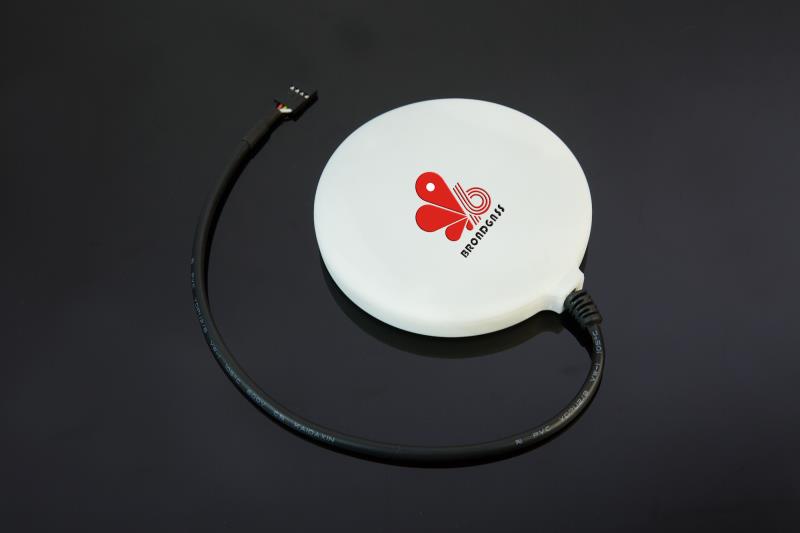

RAC-P1.

P1 is a sub-meter level GNSS receiver designed for drones application. It supports GPS, Beidou,GLONASS and is integrated with geomagnetic compass so as to support hovering and auto return. The output format supports  NMEA-0183 and UBX protocol.   Application: Electric power inspection, Forestry research, Shipping navigation, Course survey; Geological monitoring.       Positioning preformance： Positioning Accuracy Static:<1.5m  Dynamic:20-60cm Speed Accuracy: <0.1m/s Cold start: 42s Sensitivity：Trace -165dBm Acquisition -148dBm Update rate: 1Hz,5Hz,10Hz     Power： Input：DC 5.0V Comsumption: Tracing 160mA Acquiring 180mA Interface： Half-duplex UART/RS232/CAN interface     Produce features: Operating Temprature：-30C-80C Size: Diameter 100mm (including line dock: 104.5mm)*Hight 18mm PCB size: Diameter 95mm * Hight 12mm Weight: 110g (Only PCB: 68g)
