RAC-C1.

2018-11-02 16:08| Autor: | Check: |

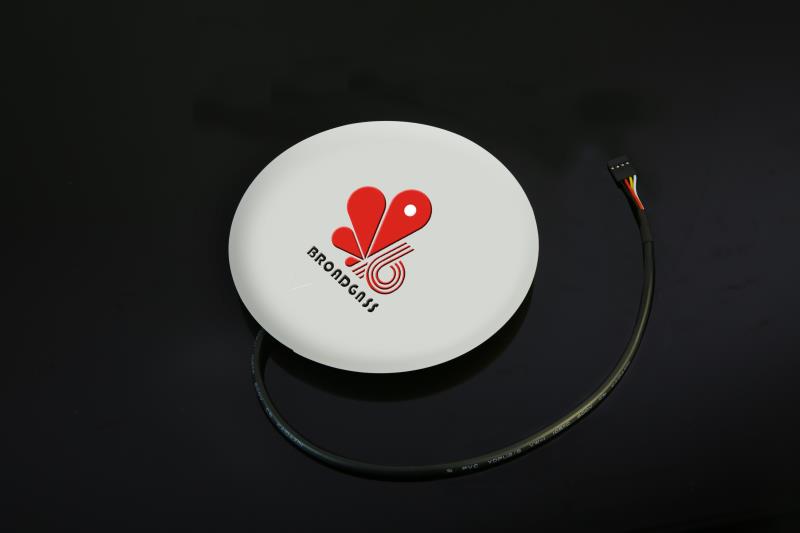

C1 is a sub-meter level GNSS receiver designed for vehicle application. It support GPS,BeiDou,GLONASS and other satellite systems. The product is based on RAC technology, with Choke coil and anti-ejection plate added internally, which works through DSP Algorithm to do filtering and processing reflection etc.With this technology, this receiver can overcome the blocking of overpass bridge, trees and interference from glasses of buildings etc. It also solves the problems of traditional high-precision positioning in various complex environments, such as positioning hopping or unstable signal issues, ensure the real-time and accuracy of signal output. This receiver output protocol is NMEA-0183.

Application: HD Map making, Unmanned autonomous vehicles,Military intelligence,Vehicle networking.



Positioning preformance
Positioning Accuracy
Static:<1.5m    Dynamic:20-60cm
Speed Accuracy: <0.1m/s
Cold start: 42s
Sensitivity:Trace -165dBm
           Acquisition -148dBm
Update rate: 1Hz,5Hz,10Hz


Power
Input:DC 5.0V
Comsumption: Tracing 160mA
                     Acquiring 180mA
Interface: Half-duplex UART/RS232/CAN interface


Produce features:
Operating Temprature:-30C-80C
Size: Diameter 145mm *Hight 18mm
PCB size: Diameter 120mm * Hight 12mm
Weight: 160g (Only PCB: 80g)


<
>
